TLC59731DR SOIC-8 3-channel, 8-bit, PWM LED driver with single wire interface has the lowest price
characteristic
Three current injection channels
Current processing capacity:
50mA per channel
Gray scale (GS) control is realized by pulse width modulation (PWM):
8-bit (256 steps) supporting simple gamma correction
Single wire interface (EasySet)
Voltage range of power supply (VCC):
No internal shunt regulator mode:
3V to 5.5V
Internal shunt voltage regulator mode: 3V to 6V
Maximum voltage of output terminal: 21V at most
Integrated shunt voltage regulator
Maximum data transmission rate:
Bits per second (bps): 600kbps
Internal GS clock oscillator: 6MHz (typical value)
Display repetition rate: 3.1kHz (typical value)
Output delay switch to prevent inrush current
Unlimited device cascade
Operating temperature: - 40 ° C to 85 ° C
Scope of application
RGB LED spotlight display
explain
TLC59731 device is an easy to use 3-channel 50mA perfusion LED driver. This single wire, 600kbps serial interface (EasySet) provides a solution that greatly reduces the cost of wiring. The LED driver provides 8-bit pulse width modulation (PWM) resolution and a simple gamma correction feature. The device is integrated with a 6MHz gray scale (GS) clock oscillator, which can make the display repetition rate reach 3.1kHz (typical value). This drive also provides unrestricted cascading capabilities.
Three current injection channels
Current processing capacity:
50mA per channel
Gray scale (GS) control is realized by pulse width modulation (PWM):
8-bit (256 steps) supporting simple gamma correction
Single wire interface (EasySet)
Voltage range of power supply (VCC):
No internal shunt regulator mode:
3V to 5.5V
Internal shunt voltage regulator mode: 3V to 6V
Maximum voltage of output terminal: 21V at most
Integrated shunt voltage regulator
Maximum data transmission rate:
Bits per second (bps): 600kbps
Internal GS clock oscillator: 6MHz (typical value)
Display repetition rate: 3.1kHz (typical value)
Output delay switch to prevent inrush current
Unlimited device cascade
Operating temperature: - 40 ° C to 85 ° C
Scope of application
RGB LED spotlight display
explain
TLC59731 device is an easy to use 3-channel 50mA perfusion LED driver. This single wire, 600kbps serial interface (EasySet) provides a solution that greatly reduces the cost of wiring. The LED driver provides 8-bit pulse width modulation (PWM) resolution and a simple gamma correction feature. The device is integrated with a 6MHz gray scale (GS) clock oscillator, which can make the display repetition rate reach 3.1kHz (typical value). This drive also provides unrestricted cascading capabilities.

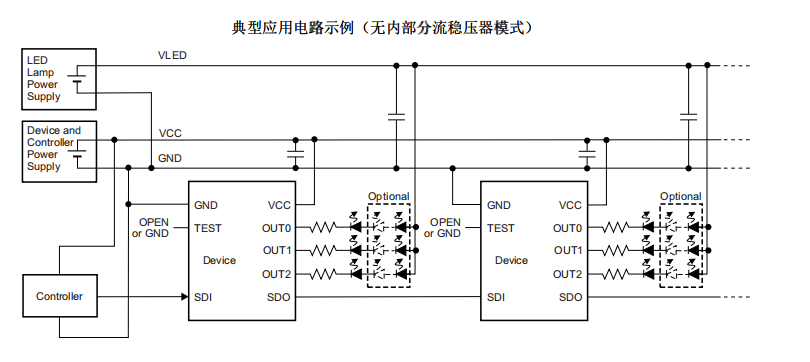

The output sink current can be set by each external resistor connected in series to the OUT terminal. TLC59731 has a built-in shunt regulator, which can be used for higher VCC power supply voltage applications.
