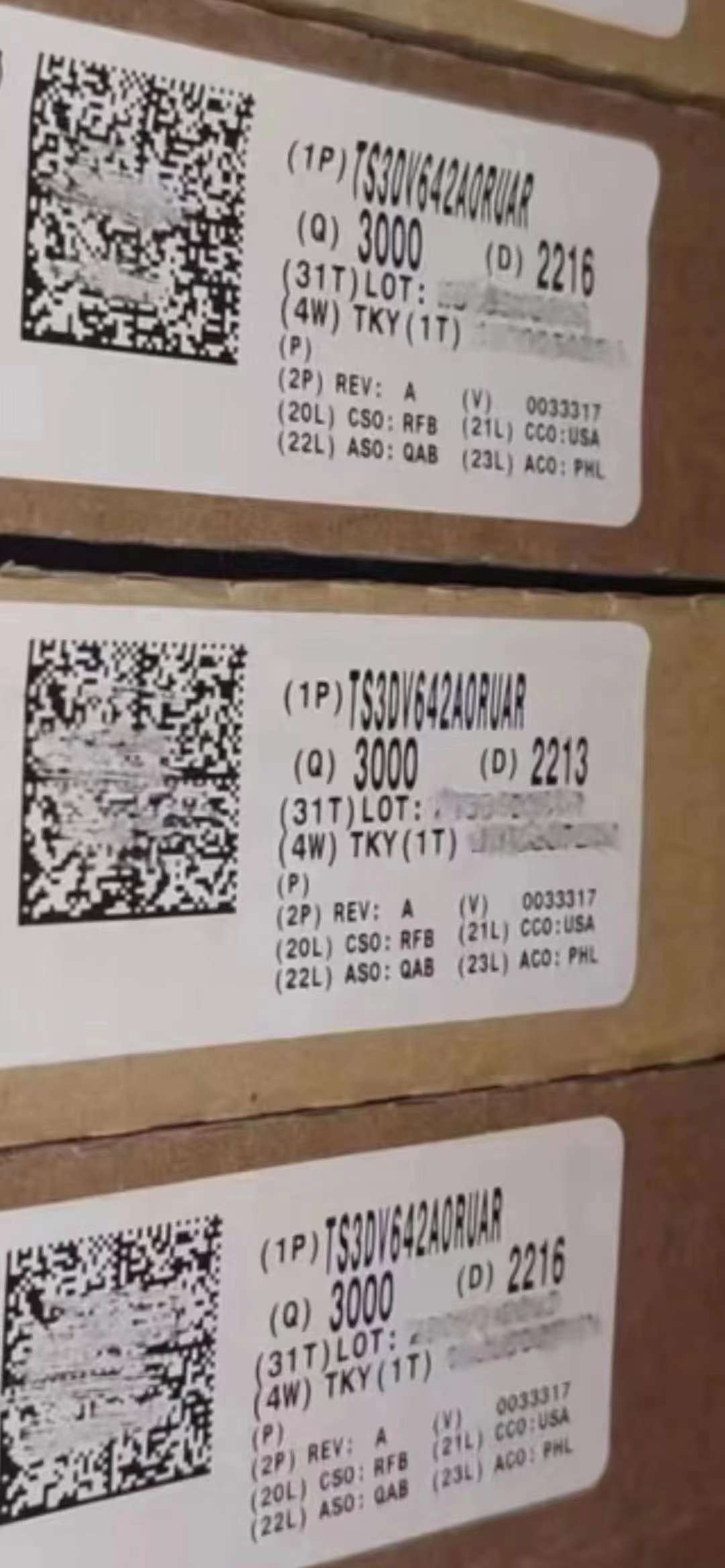

TS3DV64210RUAR WFQFN-42 12 channel 1:2 MUX/DEMUX with 1.8V compatible control and power saving mode has the lowest price
characteristic
Switch type: 2:1 or 1:2
Dynamic characteristics
Differential bandwidth (- 3dB)
Port A: typical 6.9 GHz
Port B: typical 7.5GHz
Crosstalk (at 1.7GHz): – 40dB
Isolation (at 1.7GHz): - 23dB
Disassembly loss (DC)
Port A: – 0.75dB
Port B: -1.0dB
Return loss (at 1.7GHz): -15.9dB
Inward (bit bit) offset
Port A: 2ps
Port B: 6ps
RON
Port A: 6.5 Ω
Port B: 8.2 Ω
CON at 1GHz: 0.5pF (typ.)
VCC range: 2.6V to 4.5V
I/O voltage range: 0V to 5V
Special characteristics
I Close to prevent current leakage in the de energized state (VCC=0V)
Electrostatic discharge (ESD) performance
2kV human body discharge mode (A114B, Class II)
1kV module charging mode (C101)
42 pin ultra-thin square flat leadless (WQFN) package (9mm x 3.5mm, 0.5mm spacing)
application
HDMI 2.0 supporting up to 60Hz 4k2k
DVI 1.0 signal switch
DisplayPort 1.4 signal switch
Universal TMDS signal switch
General low-voltage differential signaling (LVDS) signal switch
General high-speed signal switch
explain

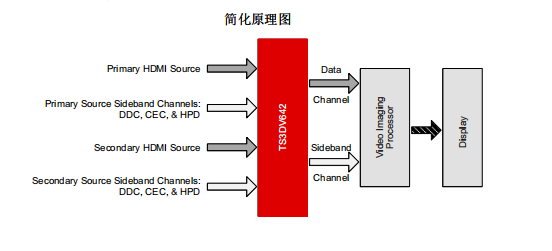

TS3DV642 is a 12 channel 1:2 or 2:1 bidirectional multiplexer/demultiplexer. TS3DV642 can be powered by 2.6V to 4.5V power supply and is suitable for battery power supply. Application. The on resistance (RON) of the device is low and the I/O capacitance is small, which can achieve a bandwidth of up to 7.5 GHz. The device provides the high bandwidth required for HDMI and DisplayPort applications.
Switch type: 2:1 or 1:2
Dynamic characteristics
Differential bandwidth (- 3dB)
Port A: typical 6.9 GHz
Port B: typical 7.5GHz
Crosstalk (at 1.7GHz): – 40dB
Isolation (at 1.7GHz): - 23dB
Disassembly loss (DC)
Port A: – 0.75dB
Port B: -1.0dB
Return loss (at 1.7GHz): -15.9dB
Inward (bit bit) offset
Port A: 2ps
Port B: 6ps
RON
Port A: 6.5 Ω
Port B: 8.2 Ω
CON at 1GHz: 0.5pF (typ.)
VCC range: 2.6V to 4.5V
I/O voltage range: 0V to 5V
Special characteristics
I Close to prevent current leakage in the de energized state (VCC=0V)
Electrostatic discharge (ESD) performance
2kV human body discharge mode (A114B, Class II)
1kV module charging mode (C101)
42 pin ultra-thin square flat leadless (WQFN) package (9mm x 3.5mm, 0.5mm spacing)
application
HDMI 2.0 supporting up to 60Hz 4k2k
DVI 1.0 signal switch
DisplayPort 1.4 signal switch
Universal TMDS signal switch
General low-voltage differential signaling (LVDS) signal switch
General high-speed signal switch
explain
TS3DV642 is a 12 channel 1:2 or 2:1 bidirectional multiplexer/demultiplexer. TS3DV642 can be powered by 2.6V to 4.5V power supply and is suitable for battery power supply. Application. The on resistance (RON) of the device is low and the I/O capacitance is small, which can achieve a bandwidth of up to 7.5 GHz. The device provides the high bandwidth required for HDMI and DisplayPort applications.
TS3DV642 has power off mode, in which all channels have high impedance (Hi-Z) and low power consumption
