Price discount of DRV5053VAEDBZRQ1 SOT-23-3 Hall sensor
characteristic
Linear output Hall sensor
AEC-Q100 compliant with automotive application requirements
Level 1: TA=– 40 to 125 ° C (Q, see)
Class 0: TA=– 40 to 150 ° C (E, see)
Excellent temperature stability
Sensitivity within the temperature range is ± 10%
High sensitivity options:
– 11mV/mT (OA, see)
–23mV/mT (PA)
–45mV/mT (RA)
–90mV/mT (VA)
+23mV/mT (CA)
+45mV/mT (EA)
Support wide voltage range
2.7V to 38V
No external regulator required
Amplified output stage
2.3 mA perfusion current, 300 µ A pull current
Output voltage: 0.2V to 1.8V
B = 0mT，OUT = 1V
Fast power on: 35 µ s

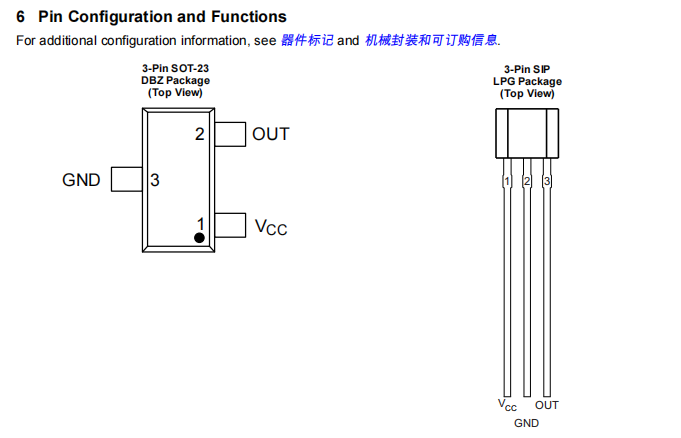

Small package size
Surface mount 3-pin small outline transistor (SOT) - 23 (DBZ)
2.92mm × 2.37mm
Plug in 3-pin system level package (SIP) (LPG)
4.00mm × 3.15mm
Protection characteristics
Reverse power protection (up to - 22V)
Support load shedding up to 40V
Output short-circuit protection
Output current limit
Battery output short-circuit protection
application
Flowmeter
Butt joint adjustment
Vibration correction
Damper control
explain
The DRV5053-Q1 device is a chopping stable Hall IC, which can provide a magnetic field sensing solution with excellent sensitivity stability and integrated protection characteristics in the entire temperature range.
The 0V to 2V analog output can make a linear response to the applied magnetic induction intensity, and can distinguish the polarity of the magnetic field direction. The wide operating voltage range (2.7V to 38V) with reverse polarity protection up to - 22V makes this device suitable for a wide range of automotive and consumer applications.
Linear output Hall sensor
AEC-Q100 compliant with automotive application requirements
Level 1: TA=– 40 to 125 ° C (Q, see)
Class 0: TA=– 40 to 150 ° C (E, see)
Excellent temperature stability
Sensitivity within the temperature range is ± 10%
High sensitivity options:
– 11mV/mT (OA, see)
–23mV/mT (PA)
–45mV/mT (RA)
–90mV/mT (VA)
+23mV/mT (CA)
+45mV/mT (EA)
Support wide voltage range
2.7V to 38V
No external regulator required
Amplified output stage
2.3 mA perfusion current, 300 µ A pull current
Output voltage: 0.2V to 1.8V
B = 0mT，OUT = 1V
Fast power on: 35 µ s
Small package size
Surface mount 3-pin small outline transistor (SOT) - 23 (DBZ)
2.92mm × 2.37mm
Plug in 3-pin system level package (SIP) (LPG)
4.00mm × 3.15mm
Protection characteristics
Reverse power protection (up to - 22V)
Support load shedding up to 40V
Output short-circuit protection
Output current limit
Battery output short-circuit protection
application
Flowmeter
Butt joint adjustment
Vibration correction
Damper control
explain
The DRV5053-Q1 device is a chopping stable Hall IC, which can provide a magnetic field sensing solution with excellent sensitivity stability and integrated protection characteristics in the entire temperature range.
The 0V to 2V analog output can make a linear response to the applied magnetic induction intensity, and can distinguish the polarity of the magnetic field direction. The wide operating voltage range (2.7V to 38V) with reverse polarity protection up to - 22V makes this device suitable for a wide range of automotive and consumer applications.
Internal protection function is provided for reverse power supply, sudden load drop and output short circuit or overcurrent.
