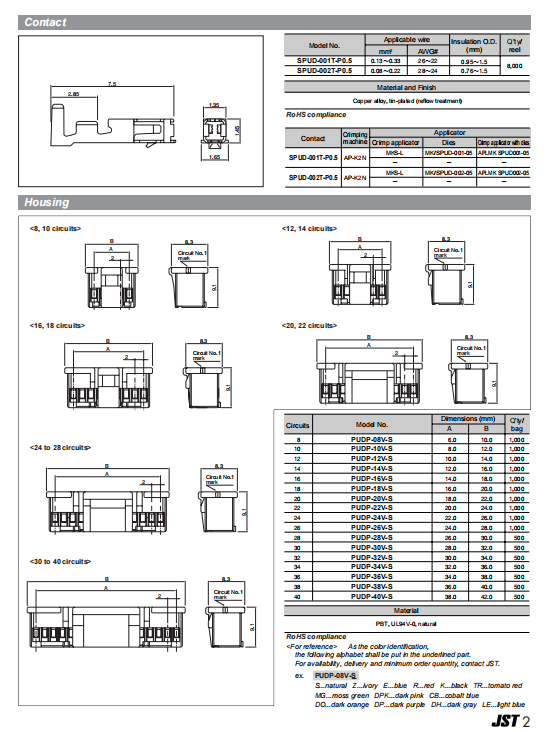

SPUD-001T-P0.5 Price discount for rectangular connector contact JST

This is a board wire connector with safety locking device, which has been designed with 2.0 mm spacing, crimping style and double row. Under the condition of low insertion force, stable electrical connection is realized under the conditions of vibration, extrusion, drying, etc. Even if there is a box wall around the head within the height of the head, the lock can be unlocked because the tip of the locking device in the socket does not protrude from its area.

• High reliability contact

• Superior operability

• Secure locking structure

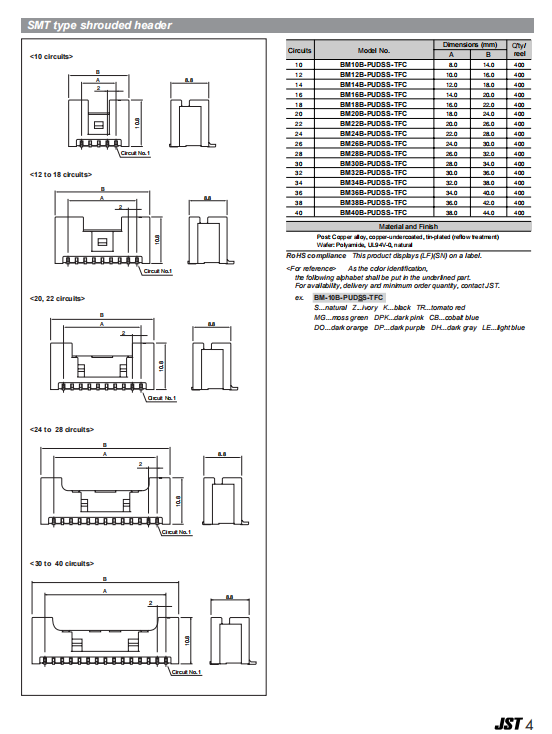

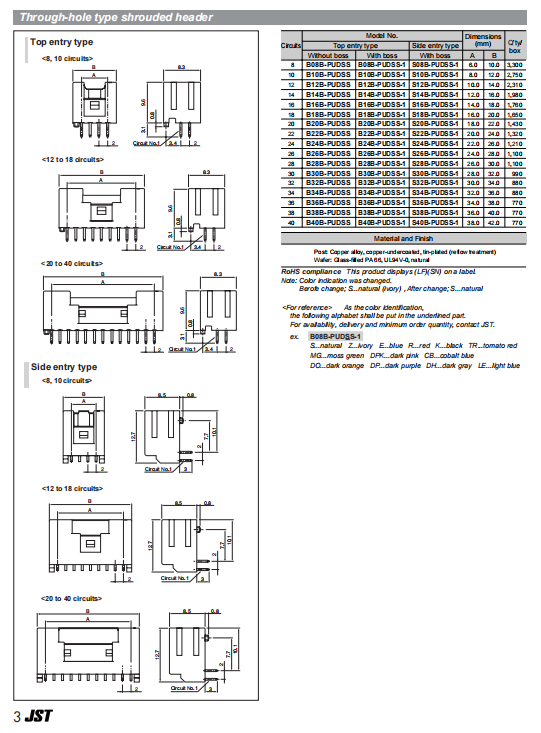

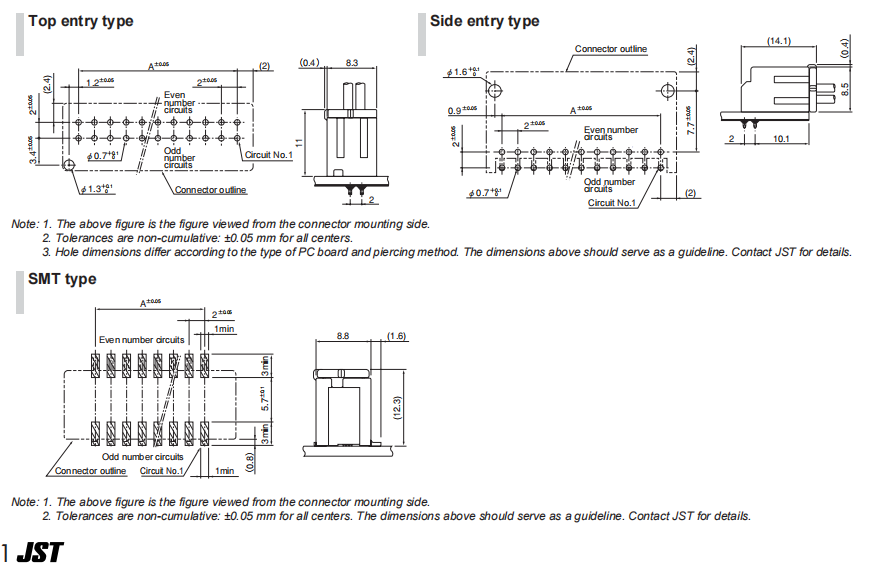

• Polarizing key for mounting on PC board

• Current rating: 3 A AC, DC (AWG #22)

• Voltage rating: 250 V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/ 10 mΩ max.

After environmental tests/ 20 mΩ max.

• Insulation resistance: 1,000 MΩ min.

• Withstanding voltage: 800 VAC/minute

• Applicable wire: Conductor size/ AWG #28 to #22

Insulation O.D./ 0.76 to 1.5 mm

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

* Compliant with RoHS.

Standards–––––––––––––––––––––––

0 Recognized E60389
