TLV9154QPWRQ1 operational amplifier TI original from stock
characteristic
Meets AEC-Q100 standards for automotive applications
Temperature class 1: – 40 ° C to+125 ° C, TA
Device HBM ESD classification level 3A
Device CDM ESD classification level C6
Low offset voltage: ± 125 µ V
Low offset voltage drift: ± 0.3 µ V/° C
Low noise: 10.8nV/√ Hz at 1 kHz
High common mode rejection: 120dB
Low bias current: ± 10pA
Rail to rail input and output
Broadband width: 4.5MHz GBW
High voltage swing rate: 21V/µ s
Low quiescent current: 560 µ A per amplifier
Wide power supply voltage: ± 1.35 V to ± 8 V, 2.7 V to 16 V
Powerful EMIRR performance: EMI/RFI filter on input pin
explain
TLV915x-Q1 series (TLV9151-Q1, TLV9152-Q1 and TLV9154-Q1) is a series of 16V general automotive operational amplifiers. These devices have excellent DC accuracy and AC performance, including rail to rail output, low offset voltage (± 125 µ V, typical), low temperature drift (± 0.3 µ V/° C, typical) and 4.5MHz bandwidth.
Convenient functions such as wide differential input voltage range, high output current (± 75mA), high voltage swing rate (21V/µ s) and low noise (10.8nV/√ Hz) make TLV915x-Q1 a powerful low-noise operational amplifier suitable for automotive applications.
TLV915x-Q1 series operational amplifier adopts standard package, and the rated operating temperature range is - 40 ° C to 125 ° C.

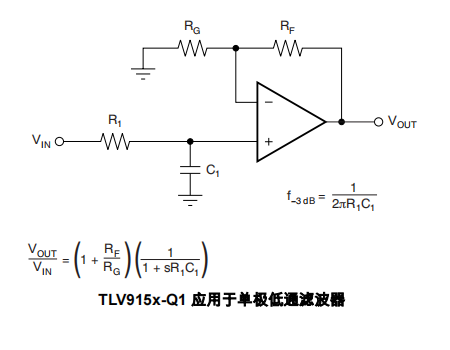

application
• Optimized for AEC-Q100 Level 1 applications
• Infotainment system and instrument cluster
• Passive safety
• Body electronics and lighting
• Hybrid electric vehicle/electric vehicle inverter and motor control
• On board charger (OBC) and wireless charger
• Powertrain current sensor
• Advanced Driving Assistance System (ADAS)
Meets AEC-Q100 standards for automotive applications
Temperature class 1: – 40 ° C to+125 ° C, TA
Device HBM ESD classification level 3A
Device CDM ESD classification level C6
Low offset voltage: ± 125 µ V
Low offset voltage drift: ± 0.3 µ V/° C
Low noise: 10.8nV/√ Hz at 1 kHz
High common mode rejection: 120dB
Low bias current: ± 10pA
Rail to rail input and output
Broadband width: 4.5MHz GBW
High voltage swing rate: 21V/µ s
Low quiescent current: 560 µ A per amplifier
Wide power supply voltage: ± 1.35 V to ± 8 V, 2.7 V to 16 V
Powerful EMIRR performance: EMI/RFI filter on input pin
explain
TLV915x-Q1 series (TLV9151-Q1, TLV9152-Q1 and TLV9154-Q1) is a series of 16V general automotive operational amplifiers. These devices have excellent DC accuracy and AC performance, including rail to rail output, low offset voltage (± 125 µ V, typical), low temperature drift (± 0.3 µ V/° C, typical) and 4.5MHz bandwidth.
Convenient functions such as wide differential input voltage range, high output current (± 75mA), high voltage swing rate (21V/µ s) and low noise (10.8nV/√ Hz) make TLV915x-Q1 a powerful low-noise operational amplifier suitable for automotive applications.
TLV915x-Q1 series operational amplifier adopts standard package, and the rated operating temperature range is - 40 ° C to 125 ° C.
application
• Optimized for AEC-Q100 Level 1 applications
• Infotainment system and instrument cluster
• Passive safety
• Body electronics and lighting
• Hybrid electric vehicle/electric vehicle inverter and motor control
• On board charger (OBC) and wireless charger
• Powertrain current sensor
• Advanced Driving Assistance System (ADAS)
• High side and low side current detection
