ADXRS453BEYZ attitude sensor/gyroscope CLCC-14-V small inventory price concessions
explain
The ADXRS453 is an angular rate sensor (gyroscope) that can be used in industrial, instrumentation and stability applications in high vibration environments. The advanced, differential, four sensor design rejects the impact of linear acceleration, enabling the ADXRS453 to provide high-precision sensing in harsh environments with shock and vibration.
ADXRS453 uses an internal continuous self-test architecture. The rate signal is generated by applying high-frequency electrostatic force to the sensing structure, which is distinguished from the baseband rate data and analyzed internally to check the integrity of the electromechanical system.
ADXRS453 can sense the angular rate up to ± 300 °/s. The angular rate data is represented as a 16 bit word and is part of a 32-bit SPI message.
The ADXRS453 has a 16 lead plastic cavity SOIC (SOIC_CAV) and SMT compatible vertical installation package (LCC_V), which can operate in a wide voltage range (3.3 V to 5 V).
features
Monolithic full rate gyroscope
± 300 °/s angular rate sensing
Ultra high vibration suppression: 0.01 °/sec/g
Excellent 16 °/hour bias stability
Internal temperature compensation
2000 g dynamic impact survivability
SPI digital output with 16 bit data word
Low noise and low power
3.3 V to 5 V operation
− 40 ° C to+105 ° C operation
Ultra small, light and RoHS standard
Two packaging options
Low cost SOIC for yaw rate (z-axis) response_ CAV package
Innovative ceramic vertical mounting package (LCC_V)
Pitch and roll response
application
Rotation sensing in high vibration environment
Rotary sensors for industrial and instrumentation applications
application
High performance platform stability
The ADXRS453 is an angular rate sensor (gyroscope) that can be used in industrial, instrumentation and stability applications in high vibration environments. The advanced, differential, four sensor design rejects the impact of linear acceleration, enabling the ADXRS453 to provide high-precision sensing in harsh environments with shock and vibration.
ADXRS453 uses an internal continuous self-test architecture. The rate signal is generated by applying high-frequency electrostatic force to the sensing structure, which is distinguished from the baseband rate data and analyzed internally to check the integrity of the electromechanical system.
ADXRS453 can sense the angular rate up to ± 300 °/s. The angular rate data is represented as a 16 bit word and is part of a 32-bit SPI message.
The ADXRS453 has a 16 lead plastic cavity SOIC (SOIC_CAV) and SMT compatible vertical installation package (LCC_V), which can operate in a wide voltage range (3.3 V to 5 V).
features
Monolithic full rate gyroscope
± 300 °/s angular rate sensing
Ultra high vibration suppression: 0.01 °/sec/g
Excellent 16 °/hour bias stability
Internal temperature compensation
2000 g dynamic impact survivability
SPI digital output with 16 bit data word
Low noise and low power
3.3 V to 5 V operation
− 40 ° C to+105 ° C operation
Ultra small, light and RoHS standard
Two packaging options
Low cost SOIC for yaw rate (z-axis) response_ CAV package
Innovative ceramic vertical mounting package (LCC_V)
Pitch and roll response
application
Rotation sensing in high vibration environment
Rotary sensors for industrial and instrumentation applications
application
High performance platform stability

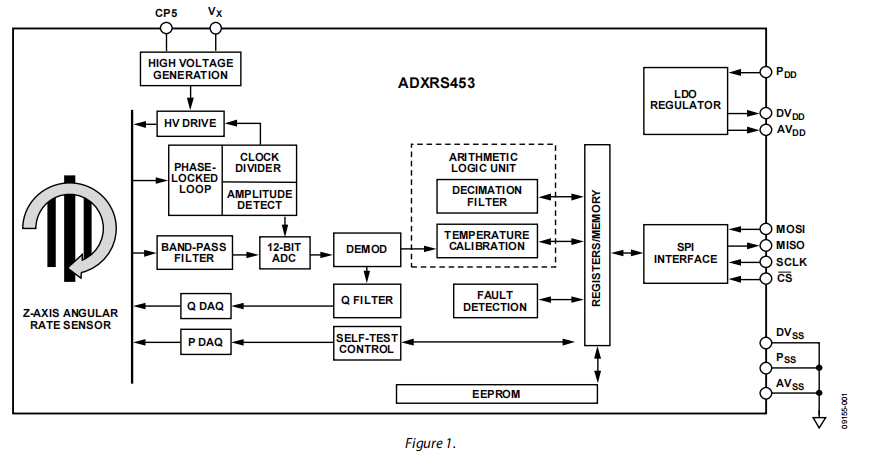

Principle block diagram
