Description

The Si5335 is a highly flexible clock generator capable of synthesizing four completely

non-integer-related frequencies up to 350 MHz. The device has four banks of outputs

with each bank supporting one differential pair or two single-ended outputs. Using

Silicon Laboratories' patented MultiSynth fractional divider technology, all outputs are

guaranteed to have 0 ppm frequency synthesis error regardless of configuration,

enabling the replacement of multiple clock ICs and crystal oscillators with a single

device. The Si5335 supports up to three independent, pin-selectable device

configurations, enabling one device to replace three separate clock generators or

buffer ICs. To ease system design, up to five user-assignable and pin-selectable

control pins are provided, supporting PCIe-compliant spread spectrum control, master

and/or individual output enables, frequency plan selection, and device reset. Two

selectable PLL loop bandwidths support jitter attenuation in applications, such as PCIe

and DSL. Through its flexible ClockBuilder™ (www.silabs.com/ClockBuilder) web

configuration utility, factory-customized, pin-controlled devices are available in two

weeks without minimum order quantity restrictions. Measuring PCIe clock jitter is quick

and easy with the Silicon Labs PCIe Clock Jitter Tool. Download it for free at

Features

Low power MultiSynth™ technology
enables independent, any-frequency
synthesis of four frequencies
 Configurable as a clock generator or
clock buffer device
 Three independent, user-assignable, pinselectable device configurations
 Highly-configurable output drivers with
up to four differential outputs, eight
single-ended clock outputs, or a
combination of both
 Low phase jitter of 0.7 ps RMS
 Flexible input reference:
External crystal: 25 or 27 MHz
CMOS input: 10 to 200 MHz
SSTL/HSTL input: 10 to 350 MHz
Differential input: 10 to 350 MHz
 Independently configurable outputs
support any frequency or format:
LVPECL/LVDS/CML: 1 to 350 MHz
HCSL: 1 to 250 MHz
CMOS: 1 to 200 MHz
SSTL/HSTL: 1 to 350 MHz
 Independent output voltage per driver:
1.5, 1.8, 2.5, or 3.3 V
 Single supply core with excellent
PSRR: 1.8, 2.5, 3.3 V
 Up to five user-assignable pin
functions simplify system design:
SSENB (spread spectrum control),
RESET, Master OEB or OEB per pin,
and Frequency plan select
(FS1, FS0)
 Loss of signal alarm
 PCIe Gen 1/2/3/4 common clock
compliant
 PCIe Gen 3 SRNS Compliant
 Two selectable loop bandwidth
settings: 1.6 MHz or 475 kHz
 Easy to customize with web-based
utility
 Small size: 4 x 4 mm, 24-QFN
 Low power (core):
45 mA (PLL mode)
12 mA (Buffer mode)
 Wide temperature range: –40 to
+85 °C

Applications

Ethernet switch/router

 PCI Express Gen 1/2/3/4

 PCIe jitter attenuation

 DSL jitter attenuation

 Broadcast video/audio timing

 Processor and FPGA clocking

 MSAN/DSLAM/PON

 Fibre Channel, SAN

 Telecom line cards

 1 GbE and 10 GbE

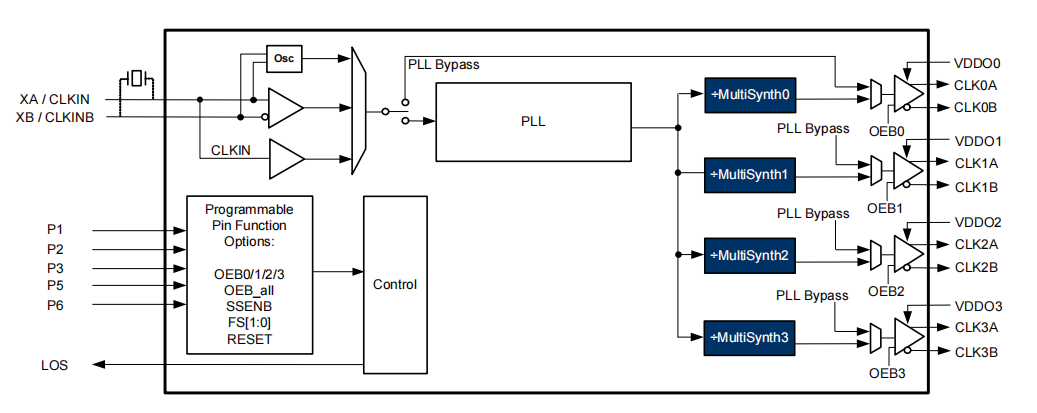

Functional Block Diagram
