ADS8332IBPWR TSSOP-24 analog-to-digital conversion chip ADC TI original stock

describe

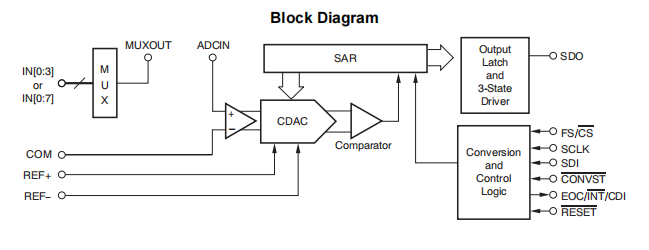

ADS8331 is a low-power, 16-bit, 500k sampling per second (SPS) analog-to-digital converter (ADC) with unipolar, 4-to-1 multiplexer (mux) inputs. The device includes a 16 bit capacitor continuous approximation register (SAR) ADC with inherent sample and hold.

ADS8332 is based on the same core and includes a single pole 8-to-1 input mux. Both devices provide a high-speed, wide voltage serial interface and can perform daisy chain operation when using multiple converters.

These converters have 24 pins, 4 × 4 VQFN and 24 pin TSSOP packaging, fully specified for operation within the temperature range of 40 ° C to 85 ° C.

Features

•

Low-Power, Flexible Supply Range:

–

2.7-V to 5.5-V Analog Supply

–

8.7 mW (250 kSPS in Auto-NAP Mode,

VA = 2.7 V, VBD = 1.65 V)

–

14.2 mW (500 kSPS, VA = 2.7 V,

VBD = 1.65 V)

•

Up to 500-kSPS Sampling Rate

•

Excellent DC Performance:

–

±1.2 LSB Typical, ±2 LSB Maximum INL at

2.7 V

–

±0.6 LSB Typical, –1, 1.5 LSB Maximum DNL

at 2.7 V

–

16-Bit NMC Over Temperature

•

Excellent AC Performance at 5 V, fIN = 1 kHz:

–

91.5-dB SNR, 101-dB SFDR, –100-dB THD

•

Flexible Analog Input Arrangement:

–

On-Chip 4-, 8-Channel Mux With Breakout

– Auto, Manual Channel Select and Trigger

•

Other Hardware Features:

–

On-Chip Conversion Clock (CCLK)

–

Software, Hardware Reset

–

Programmable Status, Polarity EOC/INT

–

Daisy-Chain Mode

–

Global CONVST (Independent of CS)

–

Deep, Nap, and Auto-NAP Powerdown Modes

–

SPI™, DSP Compatible Serial Interface

–

Separate I/O Supply: 1.65 V to VA

–

SCLK up to 40 MHz (VA = VBD = 5 V)

•

24-Pin 4-mm × 4-mm VQFN and 24-Pin TSSOP

Packages

Applications

Communications

Transducer Interfaces

Medical Instruments

Magnetometers

Industrial Process Controls

Data Acquisition Systems

Automatic Test Equipment
