ADG1636BRUZ TSSOP-16 Analog Switch/Multiplexer ADI Original Stock

explain

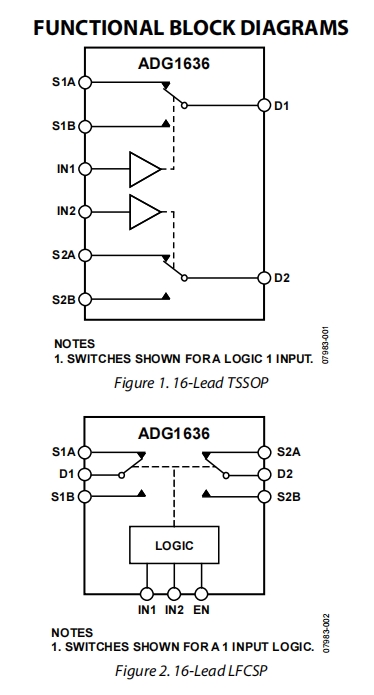

ADG1636 is a single-chip CMOS device that includes two independent selectable single pole/double throw (SPDT) switches. EN input is used to enable or disable the device. When disabled, all channels are closed. When turned on, each switch has good conductivity in both directions and has an input signal range that extends to the power supply. In the off state, the signal level up to the power supply is blocked. In multiplexer applications, both switches exhibit a pre break switching action.

The ultra-low resistance of these switches makes them ideal solutions for data acquisition and gain switch applications, where low resistance and distortion are crucial. Throughout the entire analog input range, the resistance distribution is very flat, ensuring good linearity and low distortion when switching audio signals.
The CMOS architecture ensures ultra-low power consumption, making the device highly suitable for portable and battery powered instruments.

FEATURES

1 Ω typical on resistance

0.2 Ω on resistance flatness

±3.3 V to ±8 V dual supply operation

3.3 V to 16 V single supply operation

No VL supply required

3 V logic-compatible inputs

Rail-to-rail operation

Continuous current per channel

LFCSP: 385 mA

TSSOP: 238 mA

16-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSP

APPLICATIONS

Communication systems

Medical systems

Audio signal routing

Video signal routing

Automatic test equipment

Data acquisition systems

Battery-powered systems

Sample-and-hold systems

Relay replacements
