STM32F769BIT6 LQFP-208 microcontroller ST original stock

explain

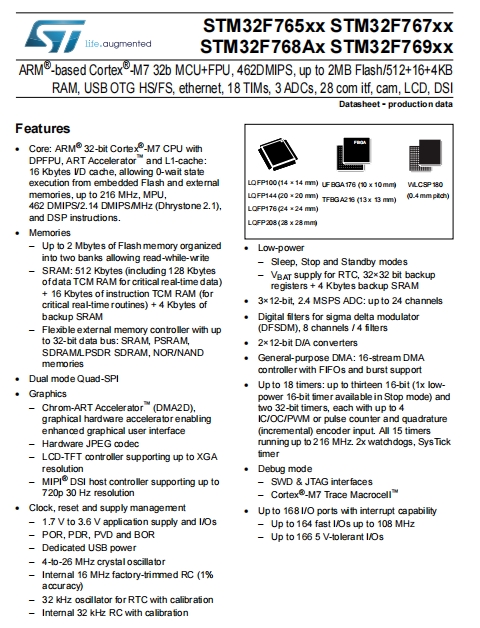

STM32F765xx, STM32F767xx, STM32F768Ax, and STM32F769xx devices are based on high-performance ARM ® Cortex ®- The M7 32-bit RISC core operates at a frequency of up to 216 MHz. Cortex ®- The M7 core has a floating-point unit (FPU) that supports ARM ® Double precision and single precision data processing instructions and data types. It also implements a complete set of DSP instructions and a memory protection unit (MPU), thereby improving the security of the application.

STM32F765xx, STM32F767xx, STM32F768Ax, and STM32F769xx devices flash 2 megabytes of high-speed embedded memory, 512 kilobytes of SRAM (including 128 kilobytes of data TCM memory critical real-time data), 16 kilobytes of instruction TCM memory (critical real-time routine), 4 kilobytes of backup SRAM minimum power mode, and a wide range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, 32-bit multi AHB bus matrix, and multi-layer AXI interconnection support internal and external memory access.

All devices provide 3 12 bit ADCs, 2 DaCs, one low-power RTC, 12 universal 16 bit timers, including two PWM timers for motor control, two universal 32-bit timers, and a true random number generator (RNG). They also have standard and advanced communication interfaces.

• Up to four I2C
Six SPIs, three I2S, in half duplex mode. In order to achieve audio accuracy, I2S
Peripheral devices can be timed through dedicated internal audio PLL or external clock
To allow synchronization.
• Four USARTs plus four UARTs
One USB OTG full speed and one USB OTG high speed with full speed capability (ULPI)
• Three CAN
Two SAI serial audio interfaces
Two SDMMC host interfaces
Ethernet and camera interfaces
LCD-TFT display controller
• Chrome ART Accelerator ™
SPDIFRX interface

• HDMI-CEC

Advanced peripherals include two SDMMC interfaces, a flexible memory control (FMC) interface, a quad SPI flash interface, and a camera interface for CMOS sensors. Please refer to Table 2 for the external design numbers of STM32F765xx, STM32F767xx, STM32F768xx, and STM32F768xx32F769xx.
The STM32F765xx, STM32F767xx, STM32F768Ax, and STM32F769xx devices operate in the temperature range of -40 to+105 ° C, with a power supply range of 1.7 to 3.6 V. Except for LQFP100, all software packages offer dedicated power inputs for USB (S OTG-FS and OTG_HS) and SDMMC2 (clock, command, and 4-bit data) to provide greater power options.

When using an external power supply main, the power supply voltage can be reduced to 1.7V (refer to section 2.18.2: Internal reset OFF). A comprehensive energy-saving mode that allows the design of low-power applications.

The STM32F765xx, STM32F767xx, STM32F768Ax, and STM32F769xx devices offer 10 packaged devices ranging from 100 to 216 pins. The set of peripheral devices included varies with the selected device.
These features make the STM32F765xx, STM32F767xx, STM32F768Ax, and STM32F769xx microcontrollers suitable for a wide range of applications:
Motor drive and application control
Medical equipment
Industrial applications: PLC, inverter, circuit breaker
• Printers and scanners
Alarm system, video intercom, and HVAC
Home audio devices
Mobile applications, Internet of Things

• Wearable devices: smartwatches.
