AD7276ARMZ MSOP-8 analog-to-digital conversion chip ADC ADI original stock
describe

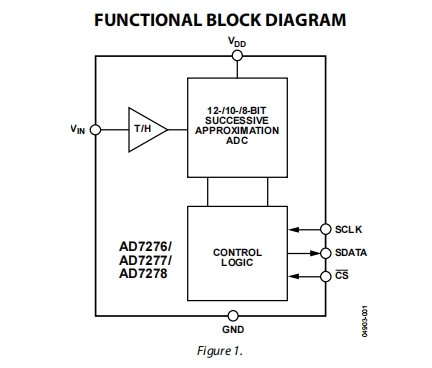

AD7276/AD7277/AD7278 are 12/10/8-bit, high-speed, low-power, and continuous approximation analog-to-digital converters (ADCs), respectively. These components can operate from a power supply of 2.35 V to 3.6 V, with a throughput of up to 3 MSPS. These components include a low noise, broadband tracking and holding amplifier that can handle input frequencies exceeding 55 MHz.
The conversion process and data collection are controlled using CS and serial clocks, allowing devices to interface with microprocessors or DSP. The input signal is sampled on the descending edge of CS, and conversion begins at this point. There is no pipeline delay associated with this component.
AD7276/AD7277/AD7278 utilizes advanced design techniques to achieve very low power consumption at high throughput rates. The reference material for this part comes from the internal data of VDD. This allows for the widest dynamic input range for the ADC; Therefore, the simulation input range of the part is from 0 to VDD. The conversion rate is determined by SCLK.
FEATURES
Throughput rate: 3 MSPSSpecified for VDD of 2.35 V to 3.6 V
Power consumption
12.6 mW at 3 MSPS with 3 V supplies
Wide input bandwidth
70 dB SNR at 1 MHz input frequency
Flexible power/serial clock speed management
No pipeline delays
High speed serial interface
SPI-/QSPI™-/MICROWIRE™-/DSP compatible
Temperature range: −40°C to +125°C
Power-down mode: 0.1 μA typical
6-lead TSOT package
8-lead MSOP package
AD7476 and AD7476A pin compatible
