DRV8908QPWPRQ1 HTSSOP-24 gate drive IC TI original stock
explain

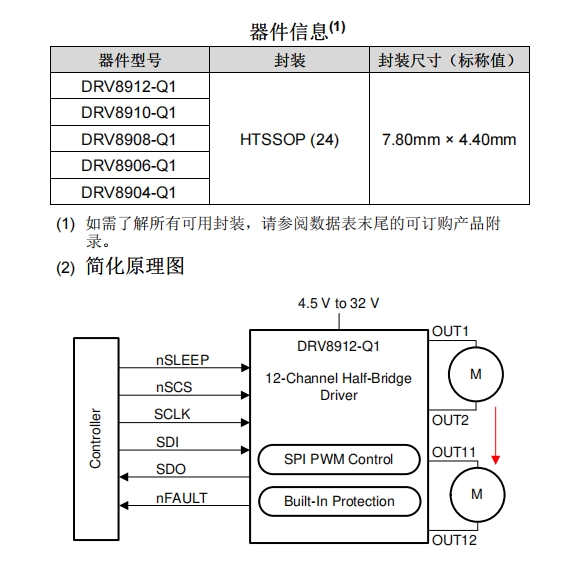

DRV89xx-Q1 is an integrated multi-channel half bridge driver series that is pin to pin compatible, with 4 to 12 half bridges. This device series has a low on state resistance (RDS (ON)), which can improve thermal performance during high current operation.
These devices can drive brush DC (BDC) motors or stepper motors in independent, sequential, or parallel modes. The half bridge is completely controllable to achieve forward, reverse, sliding, and braking operations of the motor.
These devices have a standard 16 bit 5MHz serial peripheral interface (SPI) with daisy chain functionality, allowing for complete configuration and detailed diagnosis. According to the different devices, four or eight programmable PWM generators are integrated to limit the current during motor operation or LED dimming control.
This device contains many protection and diagnostic functions, including the nFAULT pin used to alert the system in the event of a malfunction. This device has a low current open circuit load detection (OLD) mode for detecting open circuit loads when the nominal load current is low, and a passive OLD mode for offline OLD. The device also provides comprehensive protection against short circuits, undervoltages, and overheating.
characteristic
Complies with automotive standards
4. 6, 8, 10, and 12 half bridge outputs
Working voltage from 4.5V to 32V
-40V absolute maximum voltage
Each output has a current of 1A RMS
- Parallel output with a maximum current of 6A
Low power sleep mode (1.5 µ A)
Supports 3.3V and 5V logic inputs
SPI provides configuration and diagnostic functions
-5MHz 16 bit SPI communication
- Daisy chain function
PWM generator can be programmed through SPI
- Independent half bridge PWM operation
- Can be configured for high side, low side, and H-bridge load drive
- Supports 8-bit duty cycle resolution
Integrated protection function, providing detailed diagnosis for each channel through SPI
- nFAULT pin output
- VM undervoltage lockout (UVLO)
VM overvoltage protection (OVP)
- Logic power on reset (POR)
- Overcurrent protection (OCP)
- Enhanced open circuit load detection (OLD)
- Thermal warning and thermal shutdown (OTW/OTSD)
application
HVAC Wing DC Motor
Side mirror adjustment and mirror folding
LED applications
DRV89xx-Q1 is an integrated multi-channel half bridge driver series that is pin to pin compatible, with 4 to 12 half bridges. This device series has a low on state resistance (RDS (ON)), which can improve thermal performance during high current operation.
These devices can drive brush DC (BDC) motors or stepper motors in independent, sequential, or parallel modes. The half bridge is completely controllable to achieve forward, reverse, sliding, and braking operations of the motor.
These devices have a standard 16 bit 5MHz serial peripheral interface (SPI) with daisy chain functionality, allowing for complete configuration and detailed diagnosis. According to the different devices, four or eight programmable PWM generators are integrated to limit the current during motor operation or LED dimming control.
This device contains many protection and diagnostic functions, including the nFAULT pin used to alert the system in the event of a malfunction. This device has a low current open circuit load detection (OLD) mode for detecting open circuit loads when the nominal load current is low, and a passive OLD mode for offline OLD. The device also provides comprehensive protection against short circuits, undervoltages, and overheating.
characteristic
Complies with automotive standards
4. 6, 8, 10, and 12 half bridge outputs
Working voltage from 4.5V to 32V
-40V absolute maximum voltage
Each output has a current of 1A RMS
- Parallel output with a maximum current of 6A
Low power sleep mode (1.5 µ A)
Supports 3.3V and 5V logic inputs
SPI provides configuration and diagnostic functions
-5MHz 16 bit SPI communication
- Daisy chain function
PWM generator can be programmed through SPI
- Independent half bridge PWM operation
- Can be configured for high side, low side, and H-bridge load drive
- Supports 8-bit duty cycle resolution
Integrated protection function, providing detailed diagnosis for each channel through SPI
- nFAULT pin output
- VM undervoltage lockout (UVLO)
VM overvoltage protection (OVP)
- Logic power on reset (POR)
- Overcurrent protection (OCP)
- Enhanced open circuit load detection (OLD)
- Thermal warning and thermal shutdown (OTW/OTSD)
application
HVAC Wing DC Motor
Side mirror adjustment and mirror folding
LED applications
Multi brush DC motor and solenoid valve
