5-160432-4 connector, interconnection device, te original stock

5-160432-4

Specification information:

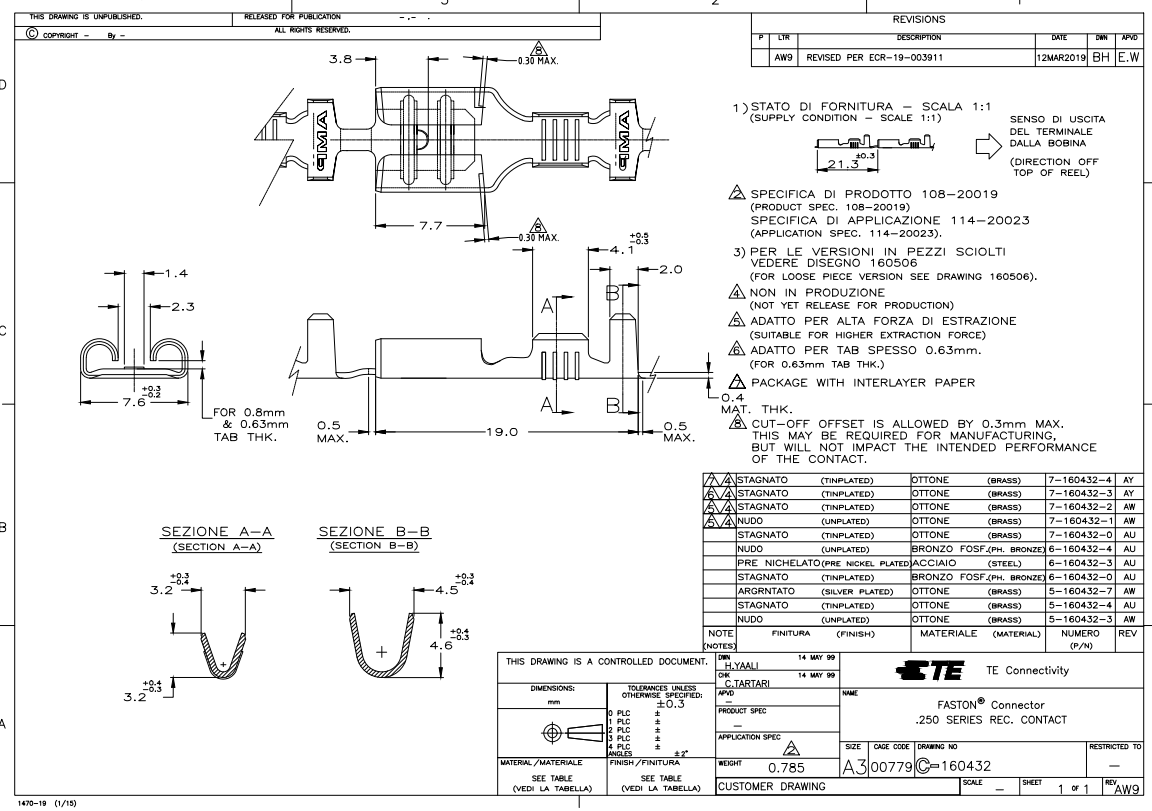

Data list: 160432 drawing

3D model: 5-160432-4 pdf

Standard package: 7000

Category: connector, interconnection device

Home: Terminal - quick connect, quick disconnect connector

Series: Faston

Packaging: reel (TR)

Terminal type: Standard

Male and female: female head

Tab width: 0.250 "(6.35mm)

Lug thickness: 0.032 "(0.81mm)

Lug length: 0.303 "(7.70mm)

Length - Total: 0.748 "(19.00mm)

Termination: crimping

Wire gauge: 15.5-20 AWG

Insulation: non insulation

Installation type: free suspension

Characteristics:-

Color:-

Contact material: Brass

Contact coating: Tin

Insulation layer diameter: 0.091 "~ 0.130" (2.31mm ~ 3.30mm)

Matching: a106966-nd - conn inventory sleep. 250a106978-nd - conn inventory sleep. 250a106979-nd - conn inventory sleep. 250a105625-nd - conn housing receive Faston. 250a112319-nd - conn RCPT HSG 2POS. 250 bluea113849-nd - conn RCPT HSG. 250 2cir faston1-735075-5-nd - conn RCPT HSG. 250 1pos blacka114372-nd - Faston HSG FEM 6,35 1wa112685-nd - conn RCPT HSG. 250 1pos natrl170823-2-nd - conn I NSULATION SLEEVE .250A113836-ND - CONN RCPT HSG 2POS .250 YELLOWA113834-ND - CONN RCPT HSG 2POS .250 GREENA112243-ND - CONN RCPT HSG .250 1POS NATRLA113869-ND - CONN RCPT HSG .250 2POS NATRLA112244-ND - CONN RCPT HSG .250 1POS NATRLA113837-ND - CONN RCPT HSG 2POS .250 BROWNA112318-ND - CONN RCPT HSG 2POS .250 REDA113880-ND - CONN RCPT HSG .250 2POS NATRLA113881-ND - CONN RCPT HSG .250 2POS BLACKA 113833-ND - CONN RCPT HSG 2POS .250 BLACKA113865-ND - CONN RCPT HSG .187/.250 2POS BLKA108211-ND - 250FASTONRECPHSG NATURAL 3CIRA107259-ND - INSULATION SLEEVE 2MM DIA 24MMA113835-ND - CONN RCPT HSG 2POS .250 BLUEA112317-ND - CONN RCPT HSG 2POS .250 NATURALA113878-ND - CONN RCPT HSG .187/.250 3POSA107650-ND - HSG RECPT FASTON INFINITE SWC1-735075-3-ND - FASTON HSG FEM 6,35 1W1-735075-4-ND - FASTON HSG FEM 6,35 1W1-735075-1-ND - FASTON HSG FEM 6,35 1W8-735075-1-ND - FASTON HSG FEM 6,35 1W BLK735075-5-ND - CONN RCPT HSG .250 1POS BLACK735075-1-ND - CONN RCPT HSG .250 1POS RED180460-ND - CONN BOOT RCPT .250 NATURAL6-735075-0-ND - FASTON HSG FEM 6,35 1W8-735075-0-ND - CONN RCPT HSG .250 1POS CLEAR2-735075-6-ND - CONN RCPT HSG .250 1POS NATRL336369-5-ND - FASTON HSG FEM 6,35 1W LIF BLK735075-2 -ND - FASTON HSG FEM 6,35 1W280233-ND - CONN RCPT HOUS
