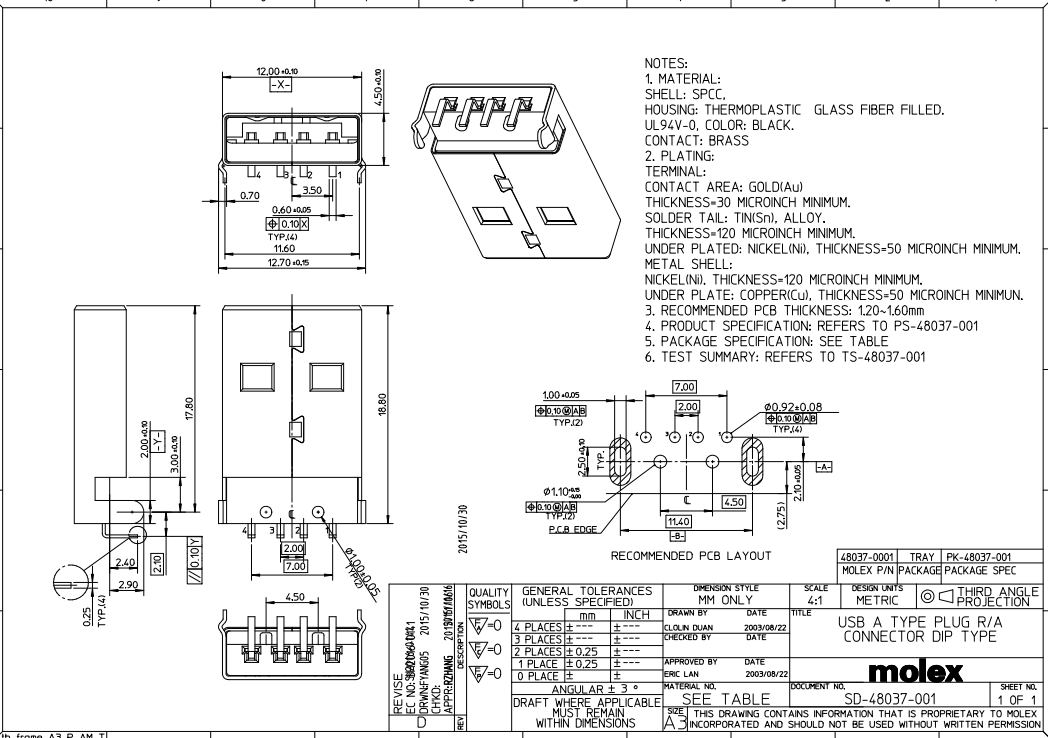

480370001 USB connector MOLEX
480370001
Specification information:
Number of pins: 4
Contact points: 4
Number of circuits: 4
Polarity: Male
Pin spacing: 2.50 mm
Rated current: 1.50 A
Contact material: Brass
Shell material: Plastic
Flammability rating: UL 94 V-0
Shell color: Black
Contact plating: Gold
Halogen-free state: Low Halogen
Direction: Right Angle
Length: 18.8 mm
Width: 12.7 mm
Height: 4.50 mm
Installation method: Through Hole, Horizontal
Packaging method: Tray
REACH SVHC Standard: No SVHC
Lead standard: Lead Free
RoHS standard: Compliant
Specification information:
Number of pins: 4
Contact points: 4
Number of circuits: 4
Polarity: Male
Pin spacing: 2.50 mm
Rated current: 1.50 A
Contact material: Brass
Shell material: Plastic
Flammability rating: UL 94 V-0
Shell color: Black
Contact plating: Gold
Halogen-free state: Low Halogen
Direction: Right Angle
Length: 18.8 mm
Width: 12.7 mm
Height: 4.50 mm
Installation method: Through Hole, Horizontal
Packaging method: Tray
REACH SVHC Standard: No SVHC
Lead standard: Lead Free
RoHS standard: Compliant
Product life cycle: Active
