Tps929120qpwprq1 LED driven htssop-24 strong shipment
1 Characteristics
– documentation to assist in the design of functional safety systems
• 12 channel precision high side current output: – power supply voltage: 4.5V to 40V
– channel current up to 75ma set by resistor
– 2-bit global, 6-bit independent current setting
– high current accuracy: when the current is 5mA to 75ma, the accuracy<
±5%
– high current accuracy: when the current is 1mA, the accuracy is < ± 10%
– low voltage drop: 500mv at 50mA
– 12 bit independent PWM dimming
– programmable PWM frequency up to 20KHz
– linear and exponential dimming methods
• flexible conductor control interface
– clock frequency up to 1MHz
– a flexible wire bus can connect up to 16 devices
– data transactions up to 8 bytes per frame
– 5V LDO output supplies power to can transceiver
• diagnosis and protection: – programmable fail safe status
– led open circuit detection
– led short circuit detection
– single LED short circuit diagnosis
– programmable low power detection
– open drain err fault indication
– watchdog and CRC for flexible wire interface
– 8-bit ADC for pin voltage measurement
– overheat protection
2 Application
• car exterior tail lights
• exterior headlights
• interior ambient lighting
• automotive instrument cluster display
3 description

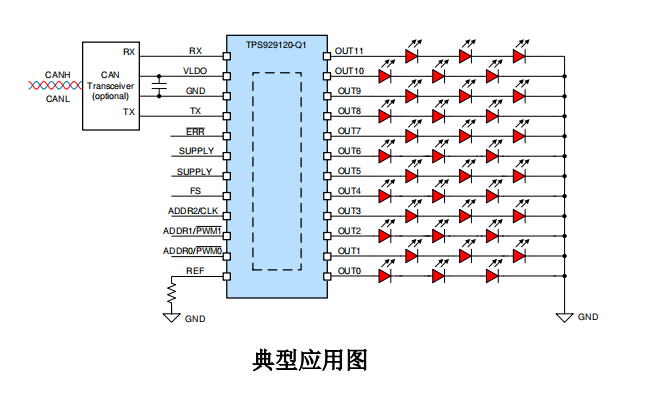

With the increasing demand for animation in the field of automotive lighting, it is necessary to
LED for separate control. Therefore, LED drive with digital interface
The filter is very important for effectively driving pixel controlled lighting applications. stay
In exterior lighting, multiple lamp functions are usually connected to each other by non onboard lines
On different PCB boards. The traditional single ended interface is difficult to meet the strict
EMC requirements. By using the industry common can physical layer,
Tps929120-q1 UART based flexible wire interface can be easily implemented
Now long-distance non onboard communication will not affect EMC performance.
Tps929120-q1 is a 12 channel 40V high side LED driver
It can control 8-bit output current and 12 bit PWM duty cycle. This device
The device has led open circuit, ground short circuit and single LED short circuit diagnosis functions,
It can meet a variety of adjustment requirements. Configurable when MCU connection is lost
The watchdog can also automatically set the fail safe status. With programmable
EEPROM can be flexibly set for different application scenarios
• comply with aec-q100 standard for automotive applications: – temperature class 1:
– 40 ° C to +125 ° C, Ta
• provide functional safety
– documentation to assist in the design of functional safety systems
• 12 channel precision high side current output: – power supply voltage: 4.5V to 40V
– channel current up to 75ma set by resistor
– 2-bit global, 6-bit independent current setting
– high current accuracy: when the current is 5mA to 75ma, the accuracy<
±5%
– high current accuracy: when the current is 1mA, the accuracy is < ± 10%
– low voltage drop: 500mv at 50mA
– 12 bit independent PWM dimming
– programmable PWM frequency up to 20KHz
– linear and exponential dimming methods
• flexible conductor control interface
– clock frequency up to 1MHz
– a flexible wire bus can connect up to 16 devices
– data transactions up to 8 bytes per frame
– 5V LDO output supplies power to can transceiver
• diagnosis and protection: – programmable fail safe status
– led open circuit detection
– led short circuit detection
– single LED short circuit diagnosis
– programmable low power detection
– open drain err fault indication
– watchdog and CRC for flexible wire interface
– 8-bit ADC for pin voltage measurement
– overheat protection
2 Application
• car exterior tail lights
• exterior headlights
• interior ambient lighting
• automotive instrument cluster display
3 description
With the increasing demand for animation in the field of automotive lighting, it is necessary to
LED for separate control. Therefore, LED drive with digital interface
The filter is very important for effectively driving pixel controlled lighting applications. stay
In exterior lighting, multiple lamp functions are usually connected to each other by non onboard lines
On different PCB boards. The traditional single ended interface is difficult to meet the strict
EMC requirements. By using the industry common can physical layer,
Tps929120-q1 UART based flexible wire interface can be easily implemented
Now long-distance non onboard communication will not affect EMC performance.
Tps929120-q1 is a 12 channel 40V high side LED driver
It can control 8-bit output current and 12 bit PWM duty cycle. This device
The device has led open circuit, ground short circuit and single LED short circuit diagnosis functions,
It can meet a variety of adjustment requirements. Configurable when MCU connection is lost
The watchdog can also automatically set the fail safe status. With programmable
EEPROM can be flexibly set for different application scenarios
TPS929120-Q1。
