522712069 FFC/FPC connector MOLEX sold at low price
522712069
Specification information:

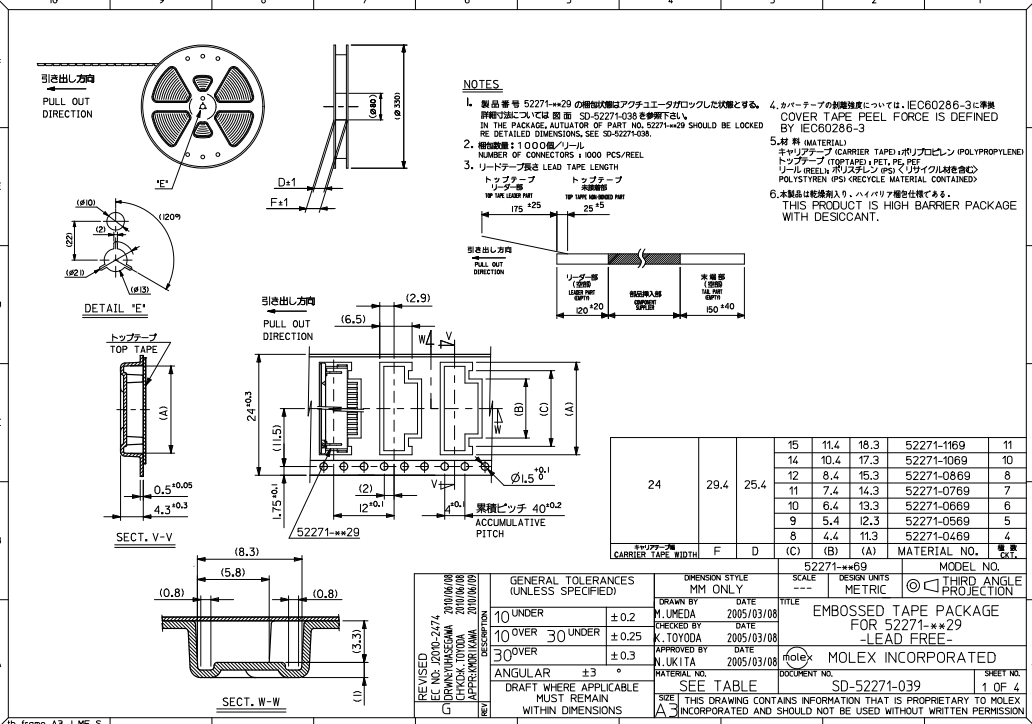

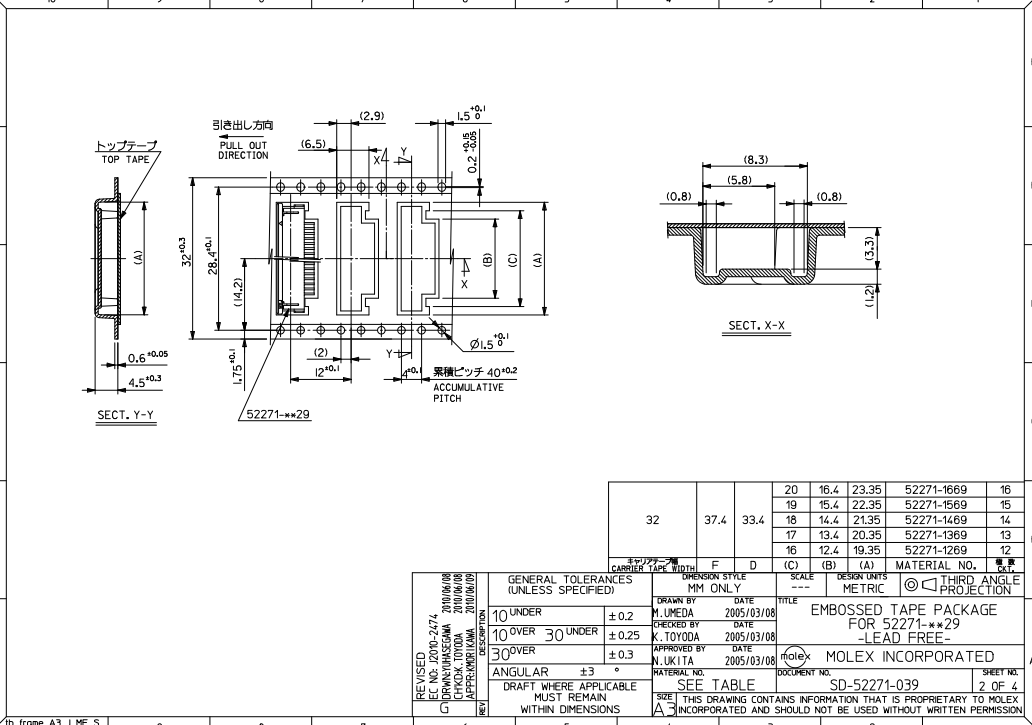

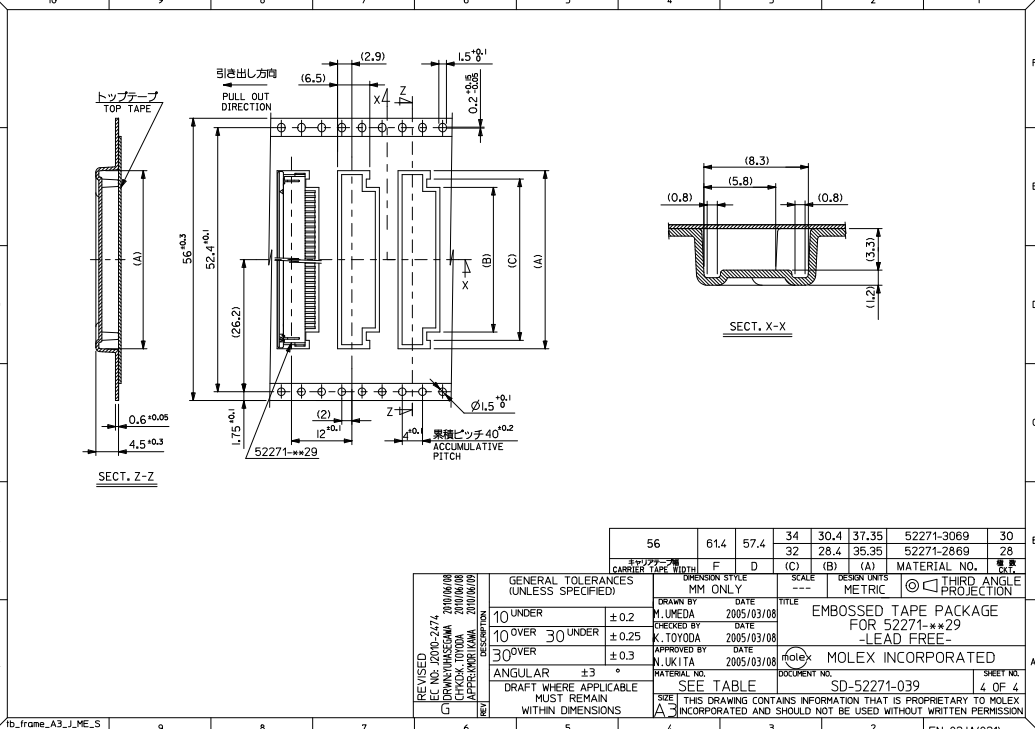

Packaging: Embossed Tape and Reel
Product length: 27
EU RoHS Directive: Compliant
Product thickness: 6.7
Maximum rated voltage: 50VDC|50VAC
Style: Right Angle
Termination: Solder
Contact type: SKT
Product height: 3
Shell material: Nylon 46
Contact points: 20
Number of rows: 1
Spacing: 1
Shell color: Natural
Contact plating: Gold Over Nickel
Installation: Surface Mount
Maximum contact resistance: 20
Maximum rated current: 0.5/Contact
Type: FPC Connector
Contact material: Phosphor Bronze
Operating temperature range: -40C to 85C
Maximum contact resistance: 20 Mohm
Rated current (maximum): 0.5/Contact A
Installation Style: Surface Mount
Contact lines: 1
Product length (mm): 27 mm
Product thickness (mm): 6.7 mm
Product height (mm): 3 mm
Maximum rated voltage: 50VDC/50VAC
Specification information:
Packaging: Embossed Tape and Reel
Product length: 27
EU RoHS Directive: Compliant
Product thickness: 6.7
Maximum rated voltage: 50VDC|50VAC
Style: Right Angle
Termination: Solder
Contact type: SKT
Product height: 3
Shell material: Nylon 46
Contact points: 20
Number of rows: 1
Spacing: 1
Shell color: Natural
Contact plating: Gold Over Nickel
Installation: Surface Mount
Maximum contact resistance: 20
Maximum rated current: 0.5/Contact
Type: FPC Connector
Contact material: Phosphor Bronze
Operating temperature range: -40C to 85C
Maximum contact resistance: 20 Mohm
Rated current (maximum): 0.5/Contact A
Installation Style: Surface Mount
Contact lines: 1
Product length (mm): 27 mm
Product thickness (mm): 6.7 mm
Product height (mm): 3 mm
Maximum rated voltage: 50VDC/50VAC
Spacing (mm): 1 mm
