528081671 MOLEX FFC/FPC Connector Spot
528081671
Specification information:
Match code: 528081671
Termin. Style:SMT
Location: STRAIGHT
Contacts Day Number: 16
Unit Pack: 1000
Standard lead time: 9 weeks
Minimum order quantity: 1000
Shell material: SOLDER
Contact: FEMALE
Contact spacing: 1.00mm
Gauge: SMT
Number of rows: 01
Certification: E29179
Series: 52808
Automobile: NO
Stress relief: 1.00
Lead-free Defin:RoHS-conform
Operating temperature range: -20C to 80C
Contact plating: Tin Over Nickel
Maximum contact resistance: 30 Mohm
Rated current (maximum): 0.5/Contact A
Shell material: Thermoplastic
Installation Style: Surface Mount
Style: Straight

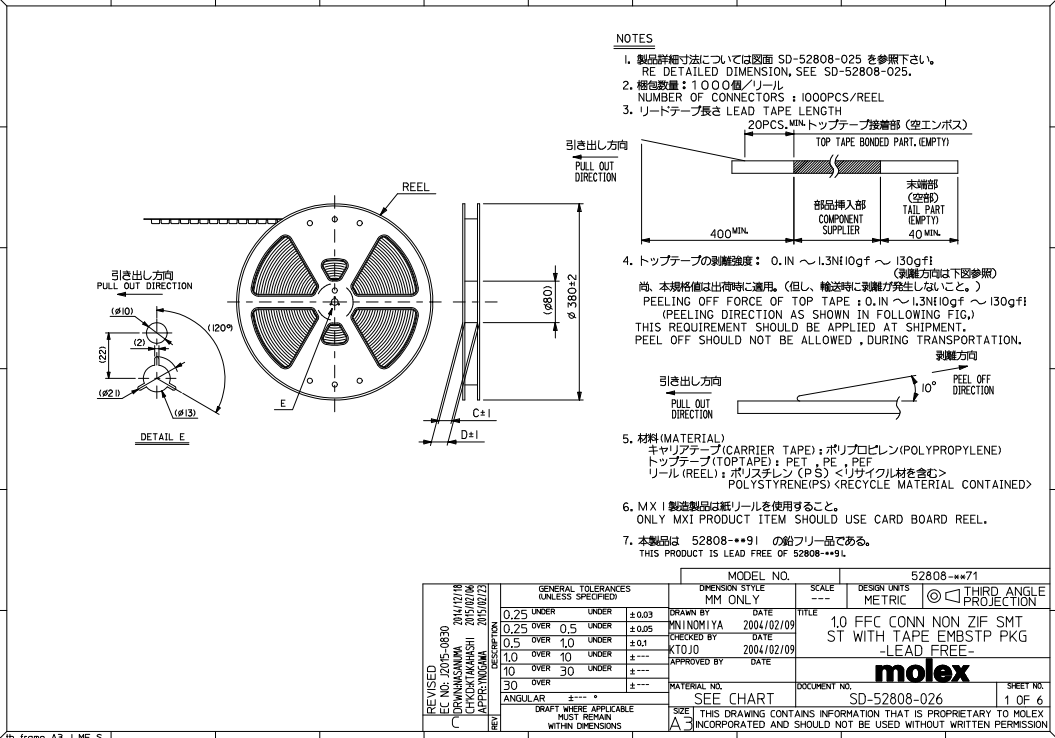

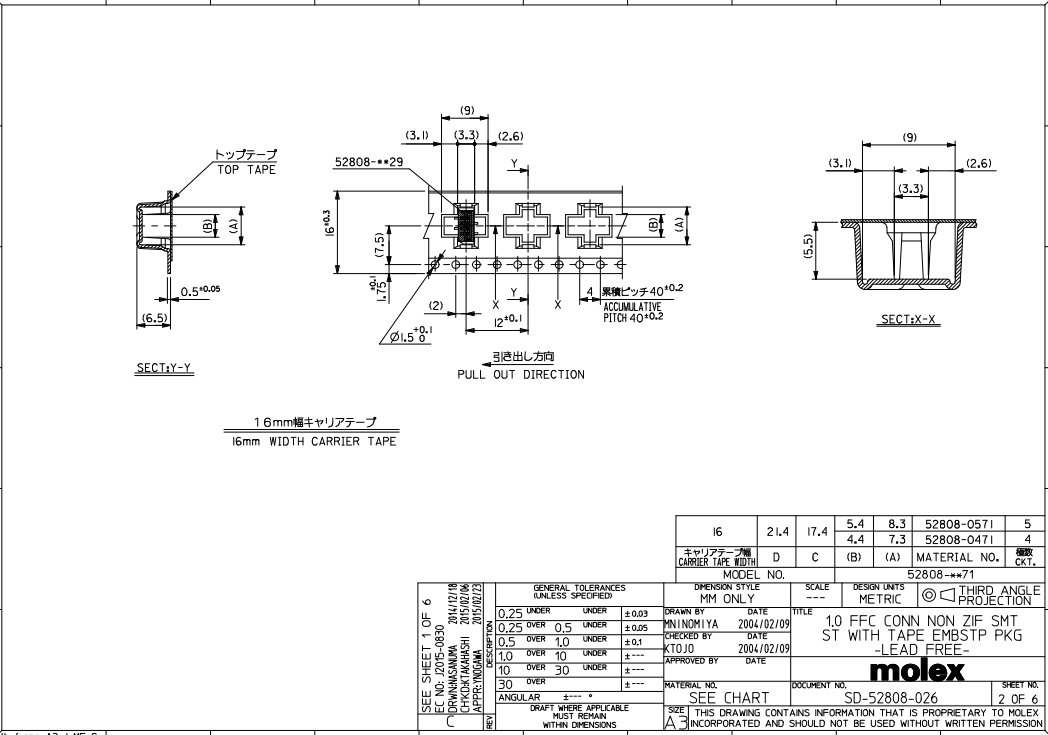

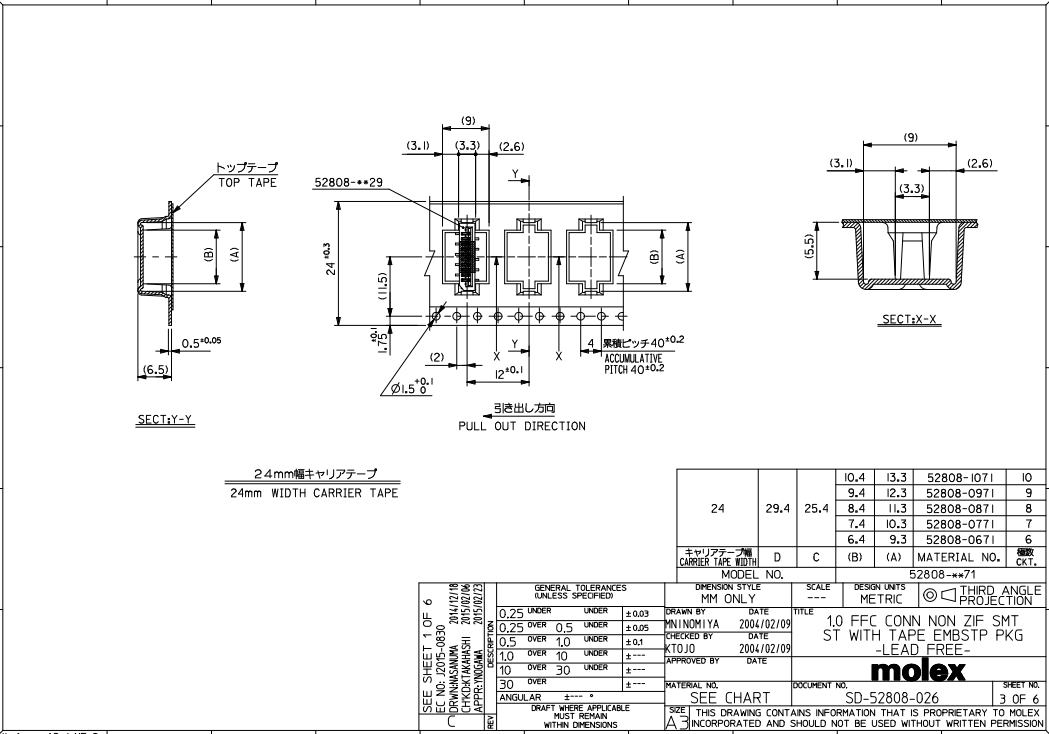

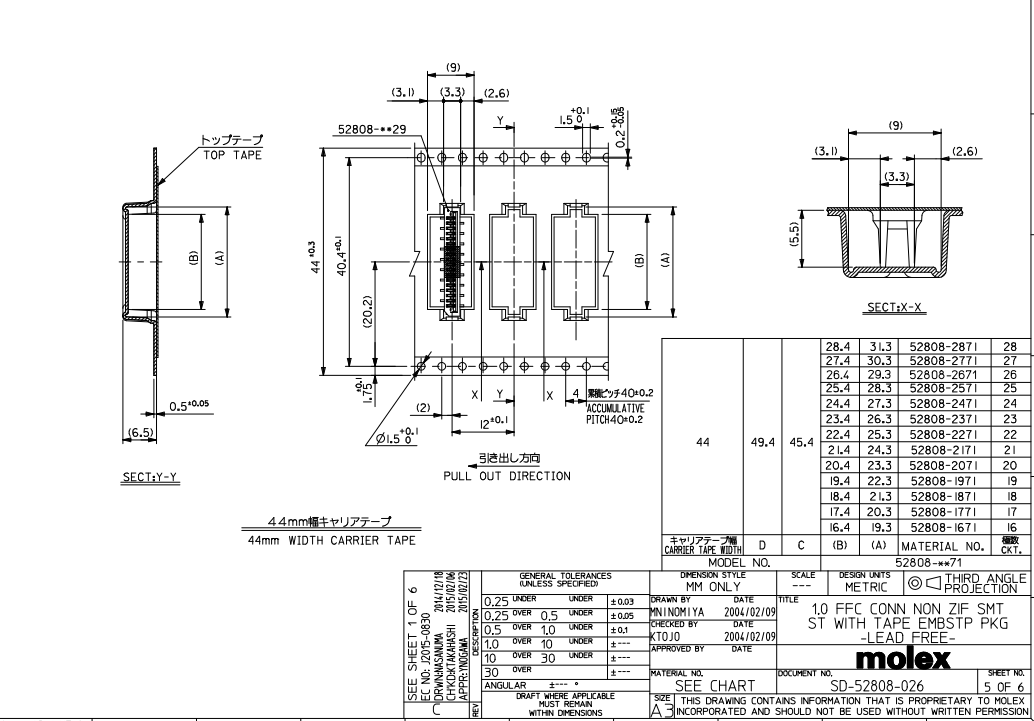

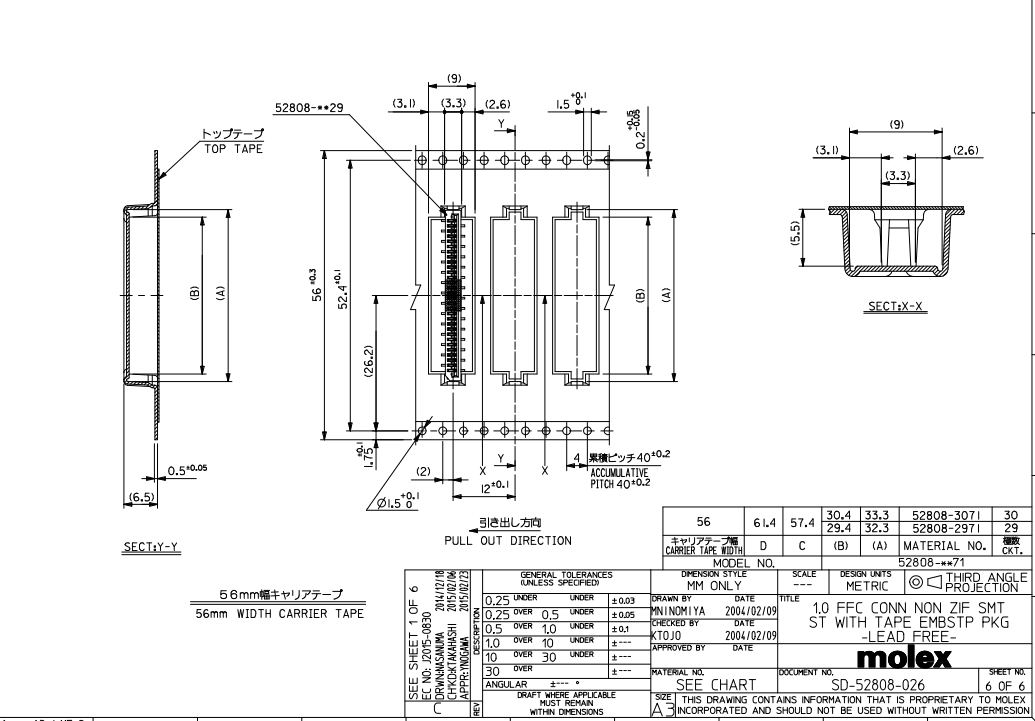

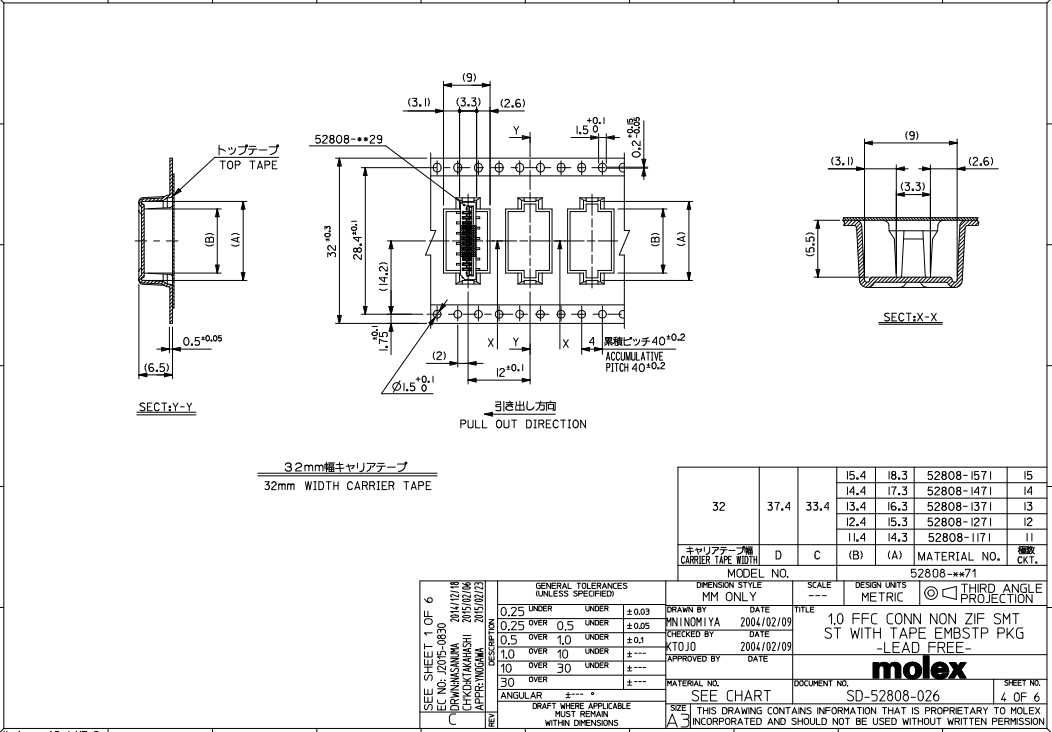

Packaging: Tape and Reel
Type: FFC/FPC Connector
Contact lines: 1
Contact material: Phosphor Bronze
Contact points: 16 POS
Shell color: Natural
Product length (mm): 19 mm
Product thickness (mm): 3 mm
Product height (mm): 5.1 mm
Maximum rated voltage: 125V
Termination: Solder
Contact type: SKT
Specification information:
Match code: 528081671
Termin. Style:SMT
Location: STRAIGHT
Contacts Day Number: 16
Unit Pack: 1000
Standard lead time: 9 weeks
Minimum order quantity: 1000
Shell material: SOLDER
Contact: FEMALE
Contact spacing: 1.00mm
Gauge: SMT
Number of rows: 01
Certification: E29179
Series: 52808
Automobile: NO
Stress relief: 1.00
Lead-free Defin:RoHS-conform
Operating temperature range: -20C to 80C
Contact plating: Tin Over Nickel
Maximum contact resistance: 30 Mohm
Rated current (maximum): 0.5/Contact A
Shell material: Thermoplastic
Installation Style: Surface Mount
Style: Straight
Packaging: Tape and Reel
Type: FFC/FPC Connector
Contact lines: 1
Contact material: Phosphor Bronze
Contact points: 16 POS
Shell color: Natural
Product length (mm): 19 mm
Product thickness (mm): 3 mm
Product height (mm): 5.1 mm
Maximum rated voltage: 125V
Termination: Solder
Contact type: SKT
Spacing (mm): 2 mm
