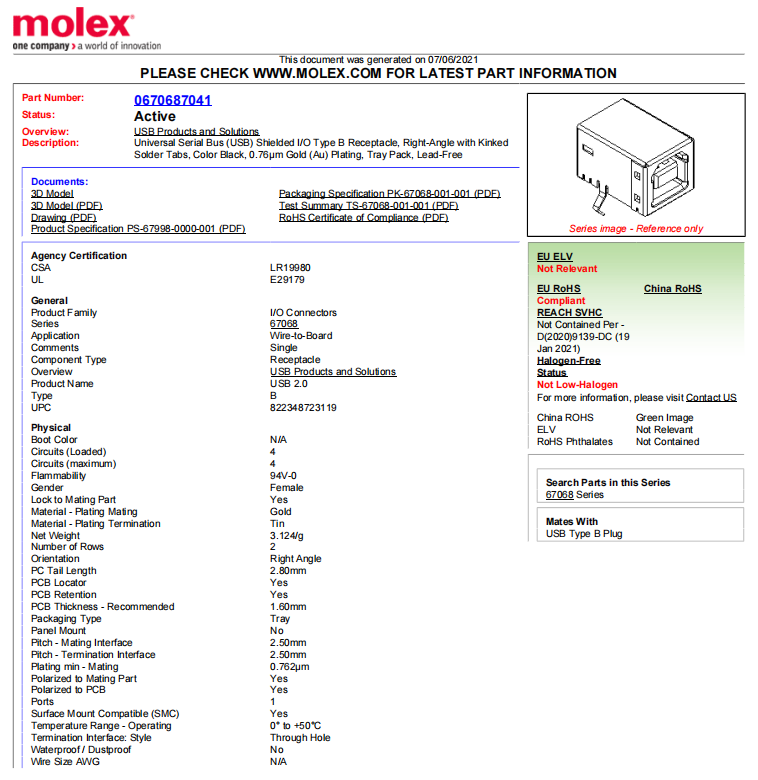

670687041 MOLEX USB Connector
670687041
Specification information:
Unit Pack: 640
Minimum order quantity: 640
Operating temperature range: 0C to 50C
Number of ports: 1 Port
Contact plating: Gold Over Nickel
Rated current (maximum): 1.5/Contact A
Type: RCP
Shell material: Nylon
Installation Style: Through Hole
Style: Right Angle
Encapsulation: Tray
The operating temperature is at maximum Celsius. 50C
Type: USB
Contact material: Phosphor Bronze
Contact points: 4 POS
Operating temperature sensitivity. 0C
Product length (mm): 12 mm
Product thickness (mm): 17 mm
Product height (mm): 11 mm
Number of terminals: 4
Shape size (mm): 12 x 17 x 11
Maximum rated voltage: 30VAC
Termination: Solder
Specification information:
Unit Pack: 640
Minimum order quantity: 640
Operating temperature range: 0C to 50C
Number of ports: 1 Port
Contact plating: Gold Over Nickel
Rated current (maximum): 1.5/Contact A
Type: RCP
Shell material: Nylon
Installation Style: Through Hole
Style: Right Angle
Encapsulation: Tray
The operating temperature is at maximum Celsius. 50C
Type: USB
Contact material: Phosphor Bronze
Contact points: 4 POS
Operating temperature sensitivity. 0C
Product length (mm): 12 mm
Product thickness (mm): 17 mm
Product height (mm): 11 mm
Number of terminals: 4
Shape size (mm): 12 x 17 x 11
Maximum rated voltage: 30VAC
Termination: Solder
Spacing (mm): 2.5 mm
