0912283001 SIM card connector MOLEX

0912283001

Specification information:

Video file: SIM-Smart Card

Featured products: RF Technology Solutions

3D models: 91228-3001. STP

Standard Packaging: 400

Category: Connectors, Interconnect Devices

Home: Memory connector - PC card

Series: 91228

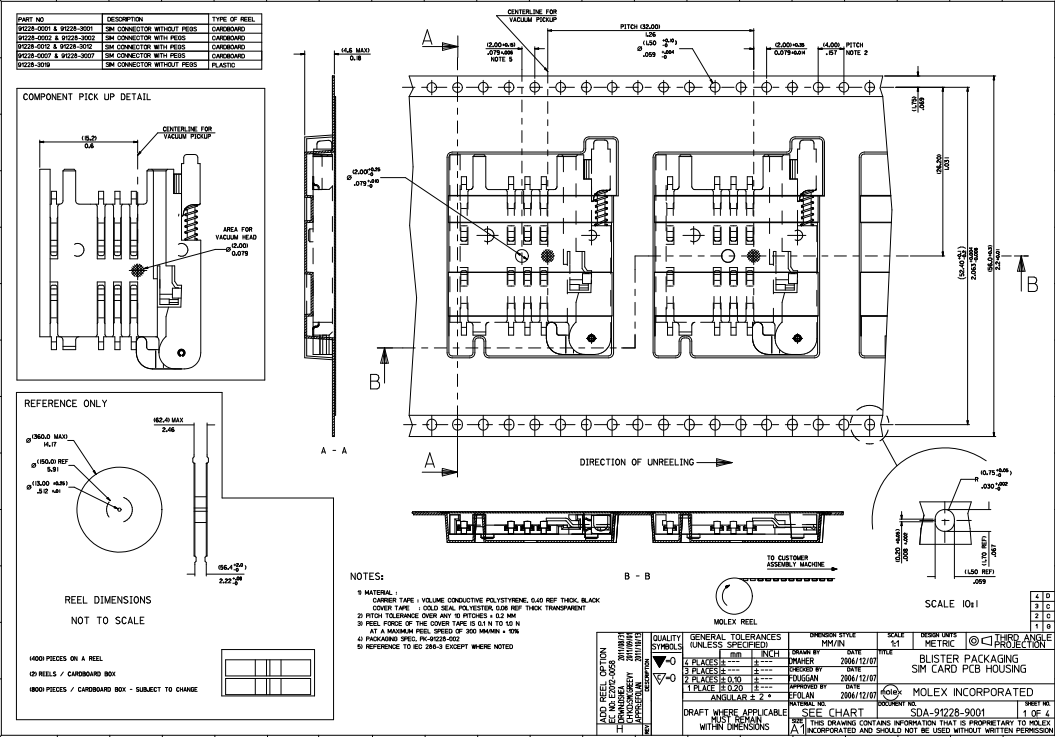

Packaging: with roll (TR)

Card type: SIM card

Number of pins: 8 (6 + 2)

Connector type: Connector and ejector

Insert, remove method: push, push

Ejector end: left

Installation type: Surface mount, Right Angle

Features: board guide, switch

Plate height: 0.118 "(3.00mm)

Installation Features: Normal, Standard-Top

Contact coating: gold

Contact coating thickness: 3.9 in (0.10 m)

Other names: 091228-3001091228-3001-C0912283001-C91228-300191228-3001-C912283001912283001-CWM24086TR
